GT JOE
Efficient production of orthopaedic insoles
Product series: GT JOE 3 | GT JOE 8 | GT JOE 10

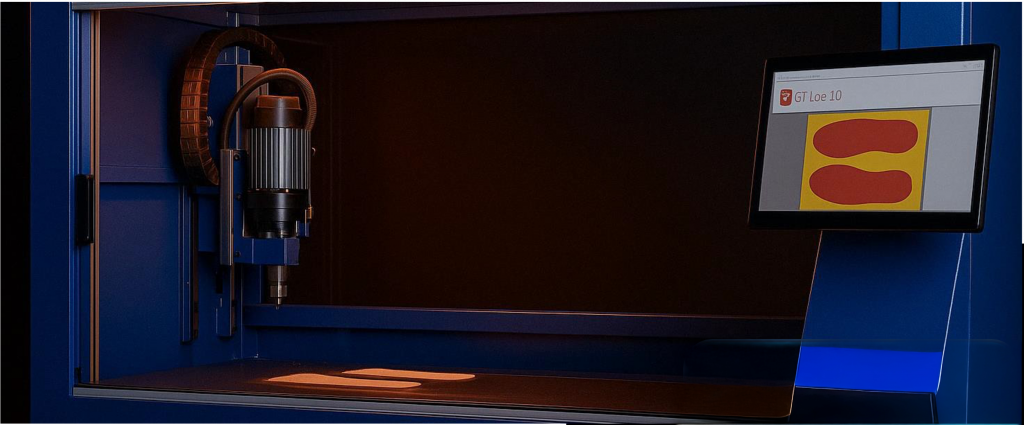

With the milling machine series GT JOE automate the precise and economical production of orthopaedic insoles - reliably, scalably and with consistently high quality. The high-performance CNC milling machines GT JOE 3, GT JOE 8 and GT JOE 10 have been specially developed to meet the requirements of modern orthopaedic technology companies and enable efficient production of large quantities. Thanks to generous travel paths, materials for Up to 10 pairs of insoles at the same time can be loaded and processed. This increases your productivity, reduces manual work steps and ensures consistently precise results with every production run.
Your advantages:
- Direct connection to CAD software go-tec inserts
- Double-sided milling of sheet material
- Cut-out blanks can be milled - with special holder
- Short set-up times thanks to large milling tables
- User-friendly operation thanks to intelligent software connection
- Maximum precision thanks to state-of-the-art control technology
OVERVIEW FAMILY GT JOE
| GT JOE 3 | GT JOE 8 | GT JOE 10 | |
| Milling times pair (size 40, Ellipse Normal) | 8 minutes | ||
| Milling on both sides | Yes | ||
| Milling materials | All common milling materials - Standardized milling height: 4.5 cm | ||
| Table size Inlays | 63 x 34 cm | 126 x 52 cm | 166 x 52 cm |
| Number of insoles (size 40) | 3 pairs | 8 pair | 10 pair |
| External dimensions machine | W 136 x D 75 x H 190 cm | W 200 x D 104 x H 180 cm | W 241 x D 104 x H 180 cm |
| Operating system | External control PC with Windows 11 Pro | ||
| Suction connection | Optionally with 40 or 100 diameter as suction device | ||
| Weight | 250 kg | 350 kg | 400 kg |
